Getac X500 Ultra Rugged 15″ Mobile Server

Rugged Raid Server. Notebook Portability

Based on the X500 Ultra Rugged Notebook, the 3rd generation briefcase-size X500 Rugged Server is a commercial off-the-shelf (COTS), high-performance, mobile rugged server that provides quick deployment and can be easily transported into emergency, disaster and temporary set-up environments.

Get a Quote for the Getac X500 Ultra Rugged 15″ Mobile Server

Getac Product Get Quote

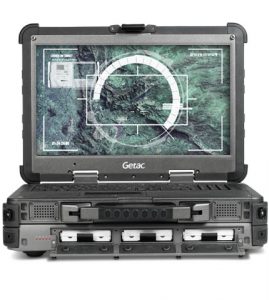

5TB of Storage / RAID 0, 1, 5.

The X500 Rugged Server has a hardware RAID (redundant array of independent disks) controller that can improve performance and protect your data. With up to 5 terabytes of storage, the X500 Server can be configured for RAID level 0, 1, 5.

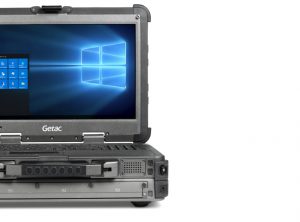

Windows Server 2016.

The X500 Rugged Server is pre-loaded with Windows Server 2016, providing powerful and flexible server application management.

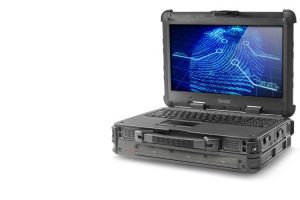

Quad-Core Processing.

With a state-of-the-art 3.0GHz Intel™ Xeon™ quad core processor, outfitted with 8MB Intel Smart Cache and 32GB of RAM that is expandable up to 64GB of RAM, the X500 Rugged Server was built to handle the most complex processing tasks.

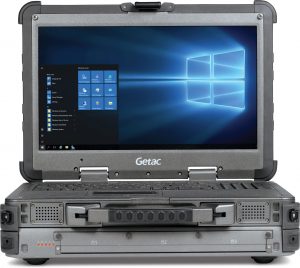

Compact and Mobile.

At 16.1 x 11.4 x 4.6 inches in size, the briefcase-size X500 Rugged Server can be easily carried and deployed, maximizing uptime and efficiency. Self-contained, the X500 Server was designed to be brought to the front line and turned on with the same simplicity of a standard notebook.

Large Sunlight Readable HD Display.

The X500 Rugged Server features a massive, 15.6 inch Full HD 1080p widescreen display, powered by an NVIDIA®GeForce® GTX950M 4GB discrete graphic controller, delivering crystal-clear high def with incredible responsiveness.

Every X500 Rugged Server features an advanced QuadraClear™ display. Getac’s QuadraClear solution reduces the sunlight’s reflectivity and provides a more effective contrast rate than other displays, while still maintaining the battery life you need in the field.

The QuadraClear display is powered by LEDs that provide an energy efficient display that is mercury-free, durable and consistent in brightness over time.

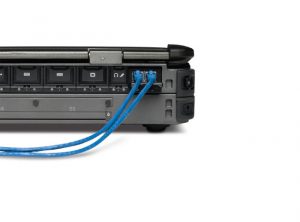

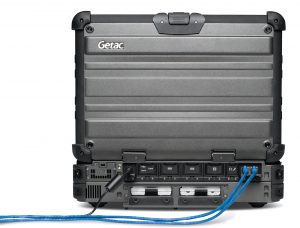

Dual Ethernet Built-In.

Every X500 Server features dual Ethernet ports. Independent Ethernet controllers allow clustering for high availability, load balancing, and fault tolerance.

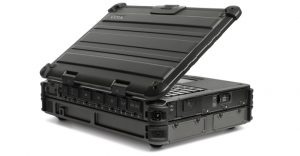

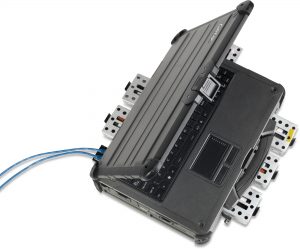

Built to Survive™.

Only Getac manufacturers rugged computers down to the chassis. Built from high quality magnesium alloy, the X500 Rugged Server features four main casings specifically engineered to protect the computer against drops, shocks, spills, vibration and more. The sealed design of the X500 Rugged Server protects it against dust and moisture.

Core Manufacturer.

Getac is one of the largest manufacturers of magnesium alloy computer chassis in the world. Our expertise in manufacturing the housing itself provides key insight into how to make them stronger.

Sealed Ports and Doors.

Sealed doors and ports provide an ingress protection against dust, moisture and water, allowing the X500 Rugged Server to be certified to an IP65 rating.

Industry’s Best 5-Year Bumper-to-Bumper Warranty.

Nothing says quality like a manufacturer standing behind their product. We’ve designed the X500 Server from the inside out to survive drops, shocks, spills, vibration and more. We’re confident in our quality, and that’s why the X500 Rugged Server comes standard with the industry’s best 5-Year bumper-to-bumper warranty. It’s the peace-of-mind protection of knowing you’re covered.¹

Covers Everything.

Getac’s warranty includes all major system components.

Accidental Damage. Getac’s warranty includes coverage for accidental acts and exposure to environmental conditions.

Genuine Parts.

Getac’s warranty repairs are carried out by expert technicians using Getac original production parts.

Ruggedness
MIL-STD 810G and IP65 certified
Full magnesium alloy case
Shock-protected removable HDD
Vibration & drop resistant
Operating System
Windows® Server 2016
CPU
Intel® Xeon® Processor E3-1505M v6 3.0GHz, Max. 4.0GHz
8MB Intel Smart Cache
Memory
32GB DDR4 expandable to 64GB
Optional 32GB DDR4 ECC expandable to 64GB
Storage
SATA HDD 500GB;
Optional SATA HDD 1TB
Optional SATA SSD 512GB / 1TB
Disk management: RAID 0, RAID 1***
Expansion Unit
Optional SATA HDD 3TB expandable to 5TB
Disk Management: RAID 0, RAID 1, RAID 5
VGA Controller
Intel HD Graphics P630
NVIDIA® GeForce® GTX950M 4GB discrete graphic controller
Display
15.6’’ FHD (1920 x 1080) TFT LCD
1000 nits QuadraClear® sunlight readable display
Keyboard
LED backlit membrane keyboard with integrated numeric keypad
Optional LED backlit rubber keyboard
Media Bay
2nd storage: HDD 500GB
Optional 2nd storage: HDD 1TB; SSD 512 GB / 1TB
Optional 2nd battery: 10.8V, 8700mAh
Expansion Slots
PCMCIA Type II x 1
ExpressCard/54 x 1
Smart Card reader x 1
SD Card Reader x 1
Security
Intel® vPro™ Technology
TPM 2.0
Smart Card reader
Kensington lock
Communications
10/100/1000 base-T Ethernet
Optional dedicated GPS
Power
AC adapter (150W, 100-240VAC, 50 / 60Hz)
Li-Ion smart battery (10.8V, 8700mAh)
Optional Multimedia Bay 2nd Li-Ion smart battery (10.8V, 8700mAh)
Dimensions and Weight
16.1 x 11.4 x 4.6” (410 x 290 x 119mm)**
18.9lbs (8.6kg)
Temperature
Operating temp: -4°F to 131°F / -20°C to 55°C
Storage temp: -40°F to 160°F / -40°C to 71°C
Humidity: 95% RH, non-condensing
IO Interfaces
Serial port (9-pin; D-sub) x 2
External VGA (15-pin; D-sub) x 1
Microphone (Mini-jack) x 1
Audio output (Mini-jack) x 1
DC in Jack x 1
USB 3.0 (9-pin) x 4
LAN (RJ45) x 2
HDMI x 1
Warranty
5 Year bumper-to-bumper warranty standard†
Specification subject to change without notice.
* For storage, 1GB = 1 billion bytes; actual formatted capacity less.
** Weight varies by configuration and manufacturing process.
*** 2nd HDD (in Media Bay) is required for RAID 0, RAID 1 configuration
† Industry’s best 5 year bumper-to-bumper limited warranty standard. For warranty terms and conditions visit www.getac.com
